Heavy rain doesn’t just flood streets. It shows which properties were built with good elevation data and which ones weren’t. A flood elevation survey done before construction is the difference between a dry floor and a ruined one. This article covers what developers learn the hard way after big storms, and what a proper survey could have prevented.

What Heavy Rain Reveals About Elevation Data

After a serious storm, the pattern is always the same. Some properties flood. Others right next to them stay dry. That’s rarely luck. It usually comes down to how well the site elevation was measured before anything was built.

Hialeah sits at about 6 feet above sea level on average. That sounds fine until you look closer. Miami-Dade County has very little elevation change across the land. A difference of just 12 inches in floor height can be the line between flood damage and none at all.

Properties that flood after heavy rain often share one thing. The elevation data used during design was outdated, pulled from a general map, or never checked by a licensed surveyor on the actual lot. General maps aren’t site-specific. They miss low spots, drainage paths and small dips that a field survey would catch.

A flood elevation survey done on the actual lot gives real numbers. Not averages. Not estimates from a map. Actual measured elevations tied to a known benchmark.

Why Post-Rain Inspections Change What Developers Think They Know

Walking a site after heavy rain teaches things no desk review can match.

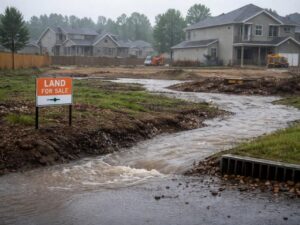

Standing water shows where the low points are. It shows which way water flows across the lot. It shows where drainage is blocked or where water from nearby properties is pooling on the site.

Developers who only visit a site in dry conditions miss these things completely. They see a flat lot and assume drainage won’t be a problem. Then the first big storm hits and the ground floor takes on water.

In Hialeah, this happens often on infill lots. Older buildings nearby have already changed how water moves. Water that once spread across open land now gets pushed around by fences, buildings and paved surfaces. A new building on that lot inherits whatever drainage problem the neighborhood has built up over time.

A flood elevation survey done after rain, or paired with a drainage review, shows what the site actually does with water before anyone pours a foundation.

How Elevation Certificates Protect Against Future Flood Risk

An elevation certificate is a document made by a licensed surveyor. It records the finished floor elevations of a building compared to the Base Flood Elevation shown on FEMA flood maps.

Most people hear about elevation certificates when buying flood insurance. Developers should be thinking about them much earlier.

If a building’s lowest floor sits below the Base Flood Elevation, flood insurance costs go up a lot. In some Miami-Dade flood zones, being just one foot below that level can add thousands of dollars per year to an insurance bill. Being two feet above it can cut that cost by more than half.

A flood elevation survey done before design is finished lets the engineer set the floor height at a level that meets city rules and FEMA’s preferred numbers. That choice affects insurance costs for every future owner of that building.

Getting it right early costs far less than fixing it after construction.

Common Elevation Mistakes Developers Make

Relying only on the FEMA Flood Insurance Rate Map is a common problem. That map shows flood zones and Base Flood Elevation values. But it doesn’t tell you the actual grade on your specific lot. You need both.

Setting the finished floor at exactly the code minimum is another mistake. The minimum gets you permitted. It doesn’t protect the building from a storm bigger than the design standard. Hialeah has seen those storms. Building one to two feet above the minimum is the smarter move.

Ignoring freeboard requirements also trips people up. Freeboard is the extra height above the Base Flood Elevation that acts as a buffer. Miami-Dade County requires freeboard in certain flood zones. Missing that during design means redesigning after permit review, and that costs time and money.

Skipping a pre-construction flood elevation survey on a small infill lot is the mistake that surprises people most. Small lots feel like less work. In Hialeah’s dense neighborhoods, a small lot surrounded by existing buildings can have more complicated drainage conditions than a large open site.

When to Order a Flood Elevation Survey

The right time is before the design is drawn. A survey at that stage gives the engineer real grade data to work from. It confirms the Base Flood Elevation for the specific lot. It also finds any low areas that need to be fixed in the site plan.

The second best time is during the permit process. If the city flags an elevation issue, a recent survey from a licensed Florida surveyor gives you the documentation to respond.

After a flood event is also a valid time to order a survey. This applies especially when assessing damage, filing an insurance claim, or applying for a Letter of Map Amendment. A Letter of Map Amendment is a formal request to FEMA to remove a property from a flood zone when the actual ground is higher than the flood map shows. A licensed surveyor must prepare the elevation certificate for that process.

Don’t wait for water damage to start asking these questions.

Frequently Asked Questions

What Is a Flood Elevation Survey and Why Is It Important?

A flood elevation survey measures the height of a property’s ground and floors. A licensed surveyor compares those measurements to FEMA’s Base Flood Elevation. In Hialeah, where many areas sit at low elevations, the survey helps establish safe floor heights and may help reduce flood insurance costs.

How Is a Flood Elevation Survey Different From a Topographic Survey?

A topographic survey maps the contours and features of a property. A flood elevation survey focuses on specific elevation points referenced to FEMA benchmarks. The information is often used to complete an elevation certificate for permitting and insurance purposes.

What Is the Base Flood Elevation and Why Does It Matter?

The Base Flood Elevation (BFE) is established by FEMA and represents the level associated with a 1 percent annual chance of flooding. Buildings constructed below this elevation face greater flood risks and may have higher insurance premiums.

Can a Flood Elevation Survey Help Reduce Flood Insurance Costs?

Yes. If a building’s lowest floor is above the Base Flood Elevation, the elevation certificate can demonstrate reduced risk. Insurance companies may use this information to determine lower flood insurance rates.

What Is a Letter of Map Amendment and When Is One Needed?

A Letter of Map Amendment (LOMA) is a request submitted to FEMA to remove a property from a designated flood zone when survey data shows the land sits above the mapped flood elevation. An elevation certificate prepared by a licensed surveyor is typically required to support the application.
