What should a commercial property surveyor locate at a former maintenance yard?

The work usually covers existing buildings, pavement, slabs, equipment pads, visible pipes and wires, walls, curbs and any other site features tied to the next phase of work.

Can a land survey tell if an old maintenance yard is contaminated?

No. A land survey marks positions and records physical features on the surface. Testing for contamination is a job for trained environmental experts. So is explaining what those tests mean.

Can surveyors find old fuel tanks or buried pipes at a former maintenance yard?

Not through normal survey work alone. Buried items often need extra steps. This can mean utility locating, ground scanning or records research before the exact spot gets confirmed.

Why survey a maintenance yard before demolition begins?

Because the demolition and redevelopment team needs an accurate, measured map. It helps them plan removals, decide what to keep and line up the design work that follows.

Can survey data be matched up with environmental sampling at a former maintenance yard?

Yes. Surveyors can give exact positions and heights to test spots picked out in the field. This lets environmental results line up correctly with the full property map.

A Commercial Property Surveyor for Former Maintenance Yards

Posted on August 24, 2026 by Hialeah Surveyor

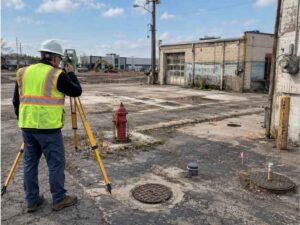

Old maintenance yards don’t stay empty for long. Builders want to turn them into new warehouses, shops, or offices. But before any work starts, someone has to check what’s really on the land. That’s the job of a commercial property surveyor. Old yards often hide years of history under cracked pavement and rusty parts. A surveyor turns that mess into a clear map that everyone can use.

Mapping the Physical Remnants of a Former Maintenance Yard

Walk through an old maintenance yard and you’ll spot the clues right away. Concrete pads sit where big machines used to stand. Slabs have drain grates cut into the service bays. Curbs don’t quite match the rest of the lot. Wash areas show stained concrete. Loading spots look worn smooth from years of trucks backing in.

A surveyor measures and records each one of these. The goal isn’t to guess why something is there. The goal is to pin down where it sits and how big it is. This record becomes the starting point for everyone who works on the site next. Architects use it to plan new layouts. Engineers use it to check the grading. Builders use it to know where they can safely dig.

Locating Old Utility Appurtenances Before Yard Redevelopment

Maintenance yards tend to collect old pipes and wires. It’s like a junk drawer full of old keys. You’ll find manholes. Valve boxes. Hydrants that may or may not still work. Utility poles standing in odd spots. Meters bolted to walls no one uses anymore. Cleanouts poking up through patched asphalt.

A surveyor finds each of these visible parts. Then the surveyor marks the exact spot on the site map. This gives engineers and utility crews a real starting point. It beats a blank page. But there’s a limit to what a surface check can show. Finding a valve box on top of the ground doesn’t tell you what pipe runs under it. It doesn’t tell you which way the pipe goes either. That part is a separate job. Utility locators and records researchers handle it. The survey just hands them a solid starting point.

Creating a Survey Base for Demolition and Site-Clearing Plans

Before any demolition crew swings a hammer, someone needs an accurate drawing of the site. That drawing must show exactly where each building, slab, wall, foundation and stretch of pavement sits today. It should not show where an old blueprint says these things should be.

A commercial property surveyor builds this drawing. The surveyor measures what’s actually there right now. Demolition crews use it to plan which structures come down first. Redevelopment teams use the same drawing too. They use it to decide what stays. They also use it to decide what gets reused and what has to go. Without solid measurements, plans get built on guesswork. Guesswork on a demolition site can get expensive fast.

Tying Environmental Investigation Locations to the Property Map

Old maintenance yards often need environmental testing before anyone builds on them again. This can mean soil borings. It can mean monitoring wells. It can mean sample points spread across the property. Each spot needs a fixed, recorded location. Without one, the test results become hard to trust later on.

This is where a surveyor’s measurements matter most. A surveyor ties each test spot to the property’s map. The surveyor marks its exact position and height. That way, when environmental experts share their findings, everyone can see where each finding came from. They can see it right on the real site map.

The two jobs stay separate on purpose. The surveyor’s job is to mark where things are. The environmental expert’s job is to explain what the test results mean. Neither one replaces the other.

Building a Current Site Record After Years of Operational Changes

Yards change more than most properties do. Machines get moved. Buildings get expanded, or torn down and rebuilt smaller. Pavement gets a new layer poured right over the old one. After ten or twenty years of this, old facility drawings barely match the real site anymore.

A new commercial survey fixes that problem. It shows the property exactly as it looks today, not as it looked decades ago. Architects, engineers, environmental experts and demolition crews all end up working from the same map. It’s up to date and accurate. That beats piecing together old drawings that don’t match anymore. This alone can save a project weeks of confusion.
