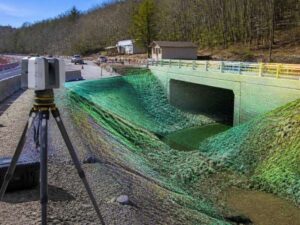

A culvert looks fine from the road. It is not fine. The invert has settled two inches, and the whole run drains the wrong way now. Nobody sees it until the first hard rain. LiDAR scanning catches that kind of thing early, because it measures the site instead of eyeballing it. The scanner fires laser pulses, times the return, and builds a dense 3D map of what is actually out there.

That map changes how you plan. You design against real ground, not a drawing from 1987. And you inspect against real numbers, not a guess.

Why Construction Projects Need Accurate Site Data

Infrastructure work lives or dies on elevations. A road, a storm line, a lift station, a retention pond. All of them depend on inches. Get the ground wrong at design and you pay for it in the field.

Bad site data shows up as change orders. The pipe hits an old duct bank nobody mapped. The grade ties into a curb that sits lower than the plan says. Crews stop, the engineer redraws, and your schedule slips a week. None of that is a surprise if you measured first.

There is a money side too. Earthwork quantities drive a big share of any infrastructure bid. If your existing ground surface is rough, your cut and fill numbers are rough. Contractors price that risk, and you pay for it whether the risk shows up or not.

Challenges of Traditional Construction Site Inspections

The old method is a person, a rod and a good pair of boots. It works. It is also slow, and it only covers what someone chose to check.

Three things break down on infrastructure jobs. Coverage is thin, because a two mile corridor has far more shots than one crew can take in a day. Access is ugly, since half the work sits in traffic, in water or in a trench. And the record is thin, because photos and field notes prove very little when a claim lands two years later.

Traffic control makes it worse. Getting a crew safely into a live roadway costs money and burns a window. So teams check less often than they should, and problems get older before anyone finds them.

Then there is the drawing problem. Record plans for existing infrastructure are frequently wrong or missing. Everyone knows this. Everyone plans around it anyway, and then acts shocked when the field does not match.

How LiDAR Scanning Improves Construction Site Inspections

LiDAR scanning replaces the sample with a full record. You get millions of measured points instead of a few dozen shots. That single change fixes most of what breaks above.

It maps existing conditions before design starts

Scan the corridor first. You get the pavement surface, the curb lines, the headwalls, the poles and the overhead clearances in one pass. Designers work from real geometry, so fewer conflicts survive construction.

It measures things that are hard to reach

Scanners read bridge soffits, deep channels, tall walls and steep slopes from a safe distance. No lift, no ladder, no lane closure in some cases. The data comes back the same either way.

It tracks change over time

Scan the same asset twice and software shows you what moved. Settlement in an embankment. Scour around a footing. Slope loss on a bank. Small movement is invisible to the eye and obvious in a comparison.

It gives you real quantities

Point clouds turn into surfaces, and surfaces turn into volumes. Cut, fill, stockpiles, pond storage. Those numbers hold up in a pay dispute because they trace back to measured data.

It builds a record you can defend

Every scan carries a date and a coordinate system. If someone argues about conditions later, you show them the scan. That record has settled more arguments than any photo ever has.

How LiDAR Scanning Supports Safer and More Efficient Construction Projects

Safety improves for a boring reason. Fewer people stand in bad places. A scanner in a safe spot covers ground that used to mean walking a shoulder or climbing into a channel.

Drones extend that reach. Industry coverage from the International Erosion Control Association has noted that drones show real promise for site inspections, largely because they reach areas that are slow or unsafe for people to cover on foot. Put a LiDAR sensor on the drone and you get more than pictures. You get measured terrain across a whole corridor, including slopes, ditches and disturbed areas.

The efficiency gain is speed. One flight or one scan day can replace a week of conventional field work on a long site. Answers come back while the crew is still on site, so fixes stay small. Small fixes protect the schedule.

When LiDAR Scanning Provides the Greatest Value on Construction Sites

Not every job needs it. Value spikes in specific spots.

• Corridor projects, where the site is long and thin and walking it takes forever
• Sites with unreliable or missing record drawings
• Anything with tight vertical tolerance, like gravity storm and sewer lines
• Bridge, wall and culvert inspections where access is the main cost
• Big earthwork jobs, where quantities drive the money
• Repeat monitoring of settlement, scour or slope movement
• Live roadways, where every hour of lane closure has a price
• Any project heading toward a claim, where you want proof on file

Renovation and rehab work deserves its own line. Old infrastructure lies. The plans say one thing, the field says another, and a scan settles it in an afternoon.

Be honest about the small stuff, though. A short driveway culvert with clean records does not need a scan. Scanning earns its keep on complexity, access and risk. Buy it for those reasons or skip it.

Frequently Asked Questions

How accurate is LiDAR scanning for infrastructure work?

Tripod based scanners are built for millimeter to centimeter level accuracy at typical working ranges. Drone LiDAR is less precise but covers far more ground per hour. Real accuracy depends on the equipment, the range to the target, the control network and how well the scans are registered. Ask for the accuracy spec in writing and match it to the tolerance your design actually needs.

Can LiDAR see underground utilities?

No. LiDAR measures surfaces it can see, so buried lines are invisible to it. You still need utility locating or subsurface investigation for anything below grade. Many teams pair a scan of the visible site with a separate utility investigation and merge both into one model.

How does LiDAR scanning fit into the design phase?

Most teams scan before design begins, so the existing conditions surface is real from day one. The point cloud drops into civil design software and becomes the base surface for grading and profiles. Later scans then compare built work against that same design. Doing it in this order avoids redesign after construction starts.

Does LiDAR scanning replace field inspection?

No, and it should not. A scanner measures geometry, but it cannot judge workmanship, material quality or crew safety. Use scans to catch dimensional and elevation problems, then let your inspector focus on judgment calls. The two roles cover different ground.

How long does a scan take on a large site?

Field time on a corridor often runs one to two days, depending on length and access. Processing and reporting usually take longer than the scanning itself. Drone work can be faster in the field but heavier in the office. Ask for a written turnaround time, because a report that arrives after the pour is worth very little.
