Brick streets don’t act like normal pavement. They shift a little over the years. Some spots settle down. Other spots stay firm. That’s why a topographic survey plays such a big role when new work is planned next to one of these streets. A flat paper drawing can’t show what an old brick street really looks like today. Field measurements can.

Capture the Brick Street’s Existing Surface Profile in Detail

An old brick street isn’t one smooth, flat surface. It looks that way from a car window, but it isn’t. Bricks settle. Some rows sink lower than others. Some spots bulge up just slightly.

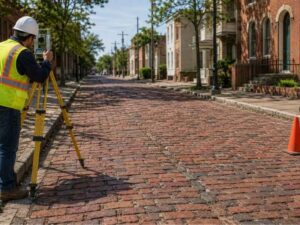

A survey crew records spot elevations across the street instead of treating it as one uniform slab. This means taking height readings at many points, not just a few along the center line. Each reading captures a small, real detail. It shows how the brick sits today.

This level of detail matters when new work has to match the street exactly. A sidewalk, entrance, or drainage feature built next to uneven brick needs real numbers to work from. A flat surface that doesn’t exist is a bad thing to guess at. It causes problems later.

Survey Changes Where Brick Pavement Meets Newer Materials

Old brick streets rarely stay pure brick forever. Somewhere along the way, a utility company patched a section with asphalt. A driveway got a new concrete apron. A stretch got resurfaced and never matched the original brick again.

A survey crew measures each of these transition points. Where does the brick end and the asphalt patch begin? How much does the surface height change at that seam? These details give designers a clear picture of what’s really there. They show more than what the original street plan intended decades ago.

Measure Curb Reveal Along Uneven Brick Street Edges

Curb reveal is the visible height of the curb above the street surface. On a fresh, uniform street, that number rarely changes along a whole block. On an old brick street, it can shift block by block. It can even shift foot by foot.

Years of settlement, patch work, and repaving can leave the brick sitting higher or lower than the curb beside it. A survey crew collects elevations along this edge. This records exactly how the two surfaces relate to each other at each point.

This isn’t about drainage patterns or runoff math. It’s a narrower task. It shows how high the curb stands above the brick, point by point, along the street.

Document Street Crowns and Cross-Slopes Without Assuming the Road Is Uniform

Most streets have a crown, meaning the center sits a bit higher than the edges. That shape helps water run off toward the gutters. On a new street, this shape stays fairly steady from block to block.

An older brick street doesn’t always cooperate. Its crown might be steep in one block and almost flat in the next. A survey crew takes many readings across the width of the street, not just down the center. This captures the real cross-section as it exists now.

These readings show the true crown, the actual cross-slope, and any local dips or high spots along the way. Assuming a standard shape here can throw off drainage plans and grading work before the project even starts.

Build an Existing-Conditions Base for Work That Must Preserve the Brick Street

Some projects don’t just sit next to a brick street. They have to work around it and keep it intact. That changes what a survey needs to accomplish.

Architects, civil engineers, and contractors need real, measured elevations. They can’t work from assumed design numbers pulled off a standard street template. A survey builds that accurate base first. Then decisions can get made about nearby entrances, sidewalks, or public improvements.

Frequently Asked Questions

Does a topographic survey show individual changes in the surface of a brick street?

It depends on the survey scope. Extra spot elevations can be requested wherever detailed pavement geometry matters for the project.

Why are spot elevations useful on an older brick roadway?

Spot elevations catch small, local changes in the surface. Broad contour lines alone often miss these details on an uneven brick street.

Should asphalt patches within a brick street be shown on the survey?

Yes, when they matter to the project. Visible pavement transitions can be located and included as part of the agreed survey scope.

Can a topographic survey measure the existing crown of a brick street?

Yes. Readings collected across the width of the road can establish its real cross-sectional shape and elevations for the design team to use.

How much of the brick street should be included in the topographic survey?

That depends on the project and what the engineer or design professional needs. The right coverage should get set before fieldwork starts.
