An architect designs a beautiful building. The civil engineer then discovers the only sewer connection sits three feet higher than the building’s lowest fixture, so the whole thing needs a pump station nobody budgeted. A topographic survey would have caught that in week one, because the invert elevation was sitting right there on the drawing.

Everyone thinks a topo is about hills. On a flat urban lot, the useful information has nothing to do with hills at all.

Contours Are the Least Interesting Part

Contour lines get all the attention. They matter, and on a flat parcel they tell you almost nothing you couldn’t guess.

The value lives in the located features. Where things are, how high they are, and what they connect to. That’s the information your design team burns weeks guessing at when nobody ordered a proper survey.

Owners consistently buy the wrong scope here. They pay for contours and skip the details that actually shape the design.

What the Drawing Actually Shows

A well scoped topo is an inventory of your site’s constraints. These are the parts your engineer opens first.

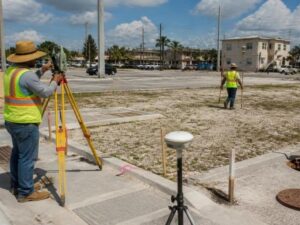

Utility structures and their inverts

Manholes, inlets, cleanouts, valves. A surveyor locates them, and on the good ones they open the lids and measure the invert, meaning the elevation of the pipe bottom inside.

That number decides whether your building drains by gravity or by pump. It’s one measurement, it costs almost nothing, and it changes your budget by six figures when it goes the wrong way. Ask for inverts by name, because a basic scope often skips them.

The street and where you connect

Curb, gutter, pavement edges, driveway aprons, sidewalk, utility poles. Your access point has to work with what’s already out there.

Existing driveway locations matter too, since some jurisdictions limit how many curb cuts you get or where they can sit. The survey shows what you have to work with.

Trees and what they cost you

Significant trees get located with trunk size when you ask for it. Many places regulate removal by size or species, and protection often extends to the root zone rather than just the trunk.

A tree in the wrong spot is a design constraint, a permit condition and sometimes a mitigation fee. Find out before the site plan, not during review.

The neighbors

Adjacent structures, fences, walls and paving near your lines all affect what you can do. So does the grade on the other side of the fence, since water crosses property lines regardless of who owns what.

Building against an existing wall raises questions your architect needs answered early.

How Far Past Your Property Line It Needs to Go

This is the scope decision people get wrong most often. A topo that stops at your boundary is frequently useless.

Your connection points are in the street. Your drainage outfall might be a structure two lots down. Review staff often want existing conditions shown some distance beyond the property, and that distance varies by jurisdiction.

Ask your civil engineer how far out they need before you order. Extending the limits during the original field visit costs a fraction of a return trip.

The Contour Interval Question

Interval is the vertical spacing between contour lines, and it decides how much detail you actually see. Wide intervals on flat ground hide everything that matters.

A flat site needs tighter intervals and spot elevations at the features that count, meaning inlets, doorways, pavement high points and low spots. Contours alone will smooth over a two inch birdbath that becomes a puddle complaint later.

Tell the surveyor what your design needs rather than accepting a default. A number chosen by habit rather than by purpose is a guess.

What a Topo Won’t Show You

Scope confusion causes real anger, so be clear about the edges.

It won’t locate buried utilities that have no visible structure. A surveyor measures what can be seen or accessed, so unmarked lines need a separate utility investigation.

It won’t establish your boundary unless you order boundary work too. Those are different products with different certifications, and plenty of owners assume one includes the other.

It won’t tell you what you’re allowed to build, since zoning is a separate research question. And it won’t evaluate soil, so anything structural still needs geotechnical work.

What to Specify Before Ordering

Say these things out loud when you request a quote. Vague scope produces a drawing your engineer can’t use.

• The contour interval you need, tied to your design
• Spot elevations at inlets, doorways, pavement breaks and low points
• Inverts on all accessible structures, with pipe sizes and directions
• Survey limits, stated as a distance beyond the property line
• Street features, including curb, gutter, apron and sidewalk
• Trees above your local size threshold, with trunk diameter
• Adjacent structures and grades near the lines
• The vertical datum your engineer expects
• File formats your design team can actually open

Send this list to your civil engineer first. They’ll add two things you didn’t think of, and those two things are usually the expensive ones.

Frequently Asked Questions

Do I need a topographic survey on a flat lot?

Yes, and flat lots are where people skip it most. Flat ground still has inverts, utility structures, street features and small elevation differences that decide how the site drains. Those small differences are exactly what contours miss and what puddles find. The survey earns its cost through the located features, not the terrain.

Does a topographic survey include my property lines?

Not automatically, since boundary and topographic work are separate products. Many owners order both together, which is usually the sensible choice for a design project. A topo without boundary work shows features without telling you where you’re allowed to put them. Ask what’s included before you assume.

What are invert elevations and why do they matter?

An invert is the elevation of the inside bottom of a pipe or structure, and it determines whether water flows by gravity. Your building’s plumbing has to sit high enough to reach the connection point with adequate fall. If it doesn’t, you’re looking at a pump system with real cost and maintenance. Ask for inverts specifically, because basic survey scopes frequently leave them out.

How long does a topographic survey take?

Field time depends on site size, access and how much detail you specify, and drafting usually takes longer than the field work. Dense urban sites with heavy vegetation or traffic control needs run longer. Rush work costs more and raises the odds of an error. Ask for a written turnaround and build it into your schedule before design starts.

Can I use an old topo from a previous project?

Sometimes, and it depends on age and what’s changed. Sites get repaved, regraded and re-plumbed, and utilities get added without anyone updating a drawing. Review staff often reject surveys past a certain age, so ask your permit office first. Give the old drawing to your surveyor either way, since it speeds up the work.
